F1F3是PW2057-33，输出3.3V
F1LE是PW2057-18, 输出1.8V
F1CE是PW2057-12，输出1.2V

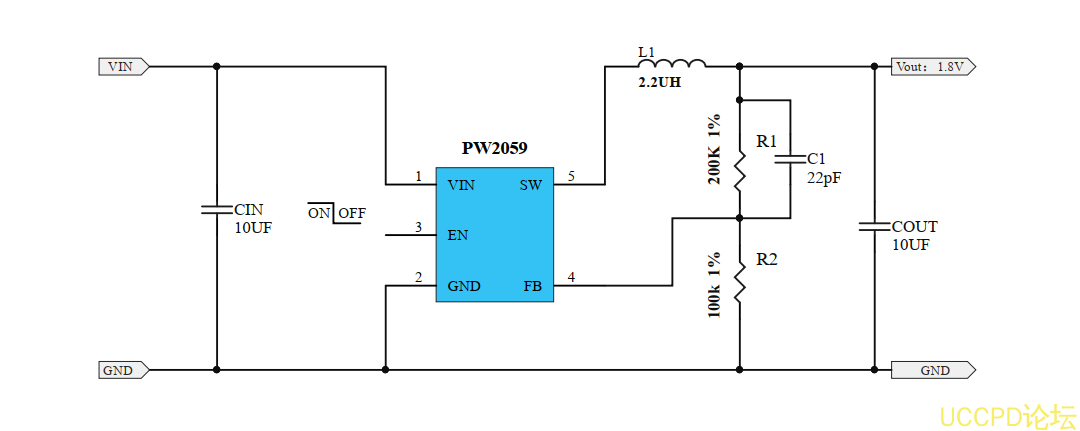

F1F9是PW2059 输出可调的
代理
深圳夸克微科技
郑R 13528458039
QQ 2867714804
GENERALDESCRIPTION
The PW2057 is a constant frequency, currentmode step-down converter. The device integrates a main switch and a synchronousrectifier for high efficiency without an external Schottky diode. It is idealfor powering portable equipment that runs from a single cell Lithium-Ion (Li+)battery. 100% duty cycle capability extends battery life in portable devices,while the quiescent current is 200μA with no load, and drops to <1μA in shutdown.
FEATURES
l High Efficiency: Up to 95%
l 1.0MHz Frequency Operation
l 2.2V to 5.5V Input Voltage Range
l Current Mode Operation for ExcellentLine and Load Transient Response
l Low Quiescent Current: 200μA
l Output Voltage: 0.6V ～ 5.5V
l Automatic PWM/PFM Mode Switching
l No Schottky Diode Required
l Short-Circuit Protection
l Shutdown Quiescent Current: < 1μA
l Low Profile SOT-23-5L Package(lead-free)
APPLICATIONS
l Digital cameras and MP3
l Palmtop computers / PDAs
l Cellular phones
l PC cards
l Portable media players
