  Description
 The FP6601AA/AM are USB Type-A fast charging protocol controller with plug in/out auto detection for HiSilicon Fast Charging Protocol (FCP) and Qualcomm ®  Quick Charge TM  2.0/3.0 (QC 2.0/3.0) USB interface. The FP6601AA/AM monitors USB DPx/DNx data line and automatically adjusts the output voltage depending on different portable device requirement. The charging time of portable device is therefore optimized by the  FP6601AA/AM.
 FP6601AA/AM can support not only USB BC compliant devices, but also Apple / Samsung / HUAWEI devices and automatically detects  whether a connected powered device is QC 2.0/3.0 or FCP capable before enabling output voltage adjustment. If a PD is not compliant with QC 2.0/3.0 and FCP, the FP6601AA/AM will disable the adjustment of output voltage and keep the default 5V output voltage for safe operation.

 Additionally, the FP6601AA/AM also monitors automatically adjust the output voltage depending on different device requirement. It is capable providing output voltage of 3.6V to 12V.

   Features
●  VDD Supply Voltage: 3.2V to 6.8V
●  Supports HiSilicon Fast Charging Protocol (FCP)
● Supports Qualcomm  ®  Quick ChargeTM  2.0/3.0 Class A
●  Automatically Selects FCP and QC2.0/3.0 Protocols
● Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2
● Supports USB DCP Applying 2.7V on D+ Line and 2.7V on D- Line
● USB Type-A Plug In/Out Detection

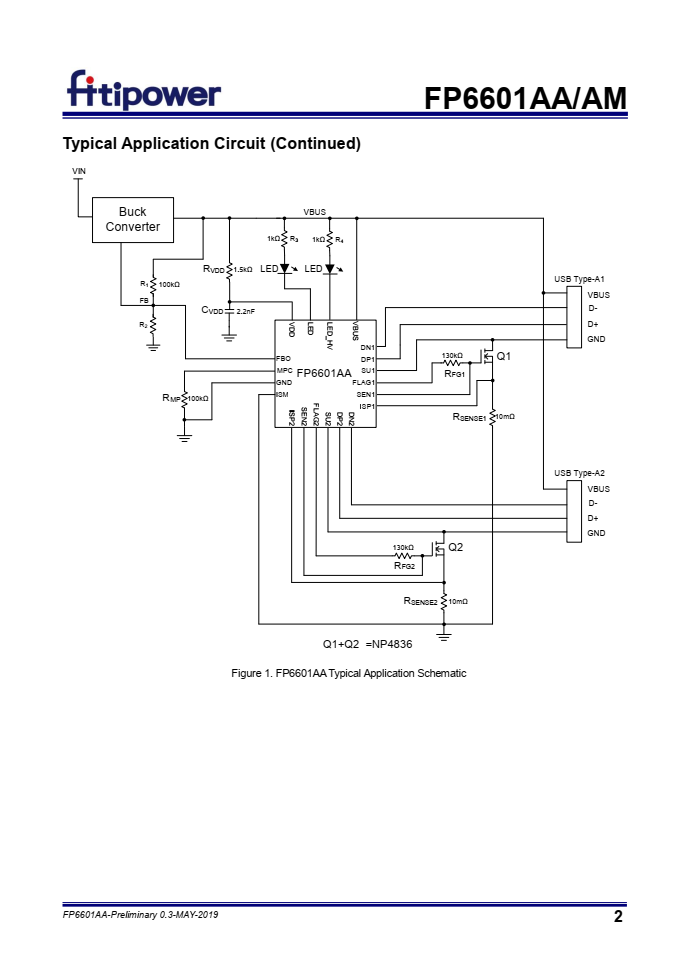

●  Multi-Ports Control Application
●  Over-Voltage Protection and VBUS Discharge Function
●  Short-Circuit Protection
●  Over-Current Protection
● LED Indicate Function (CPC-20L Only)

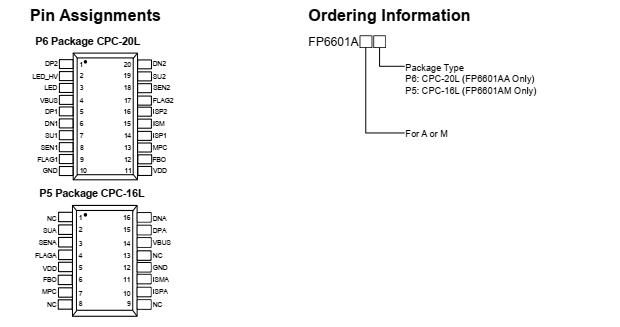

● CPC-16L and CPC-20L Packages

    Applications
● Wall-Adapter
● Car Charger
● Power Strip
● USB Power Output Port
