代理HX6038芯片，技術支援，現貨
- 2020-11-09 16:12:00
- 誇剋微 原創
- 1955

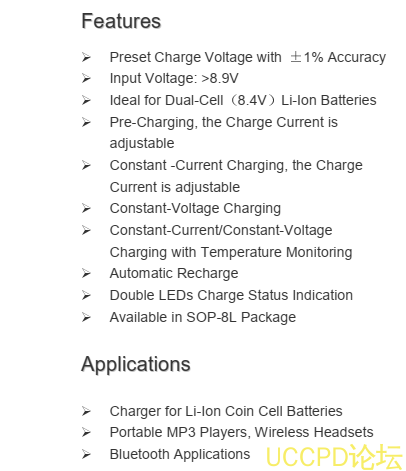

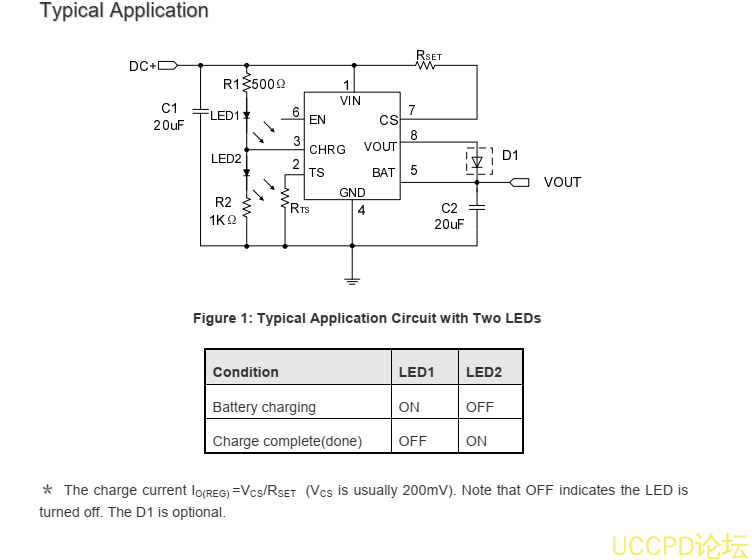

The HX6038 is a highly advanced complete constant-current/ constant voltage linear charger for cell lithium-ion batteries. Its package and low external component count make the HX6038 ideally suited for portable applications. The charge current can be programmed externally with a single resistor, which may be programmed up to 1A. HX6038 determines the charge mode by detecting the battery voltage: Pre-charge, constant current charging, constant voltage charging. The charge current of 0pre-charging and constant –current charging is adjustable.
The HX6038 is monitored by temperature monitor during the constant-current and constant-voltage charging. There are two LEDs indicate the charge mode.

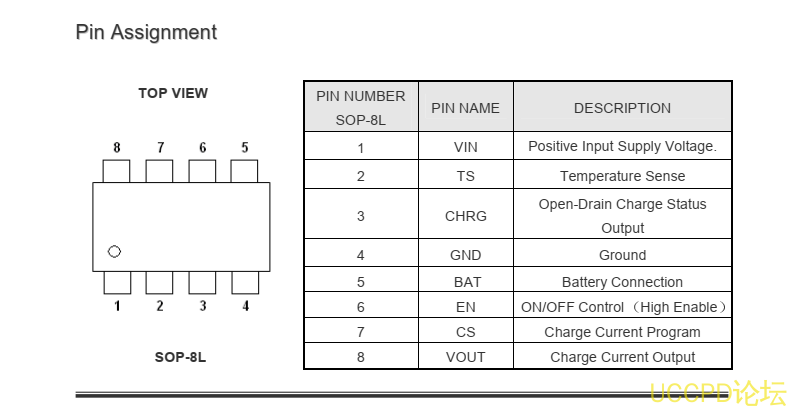

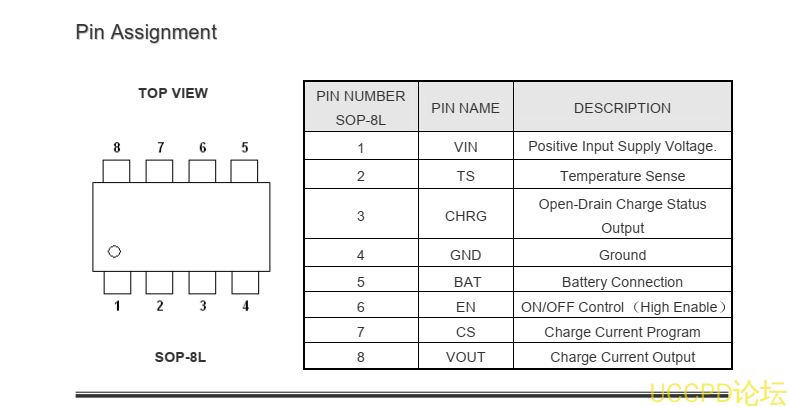

The HX6038 is available in the SOP-8L package.
代理商：深圳市誇剋微科技鄭先生 ：13528458039 QQ 2867714804
