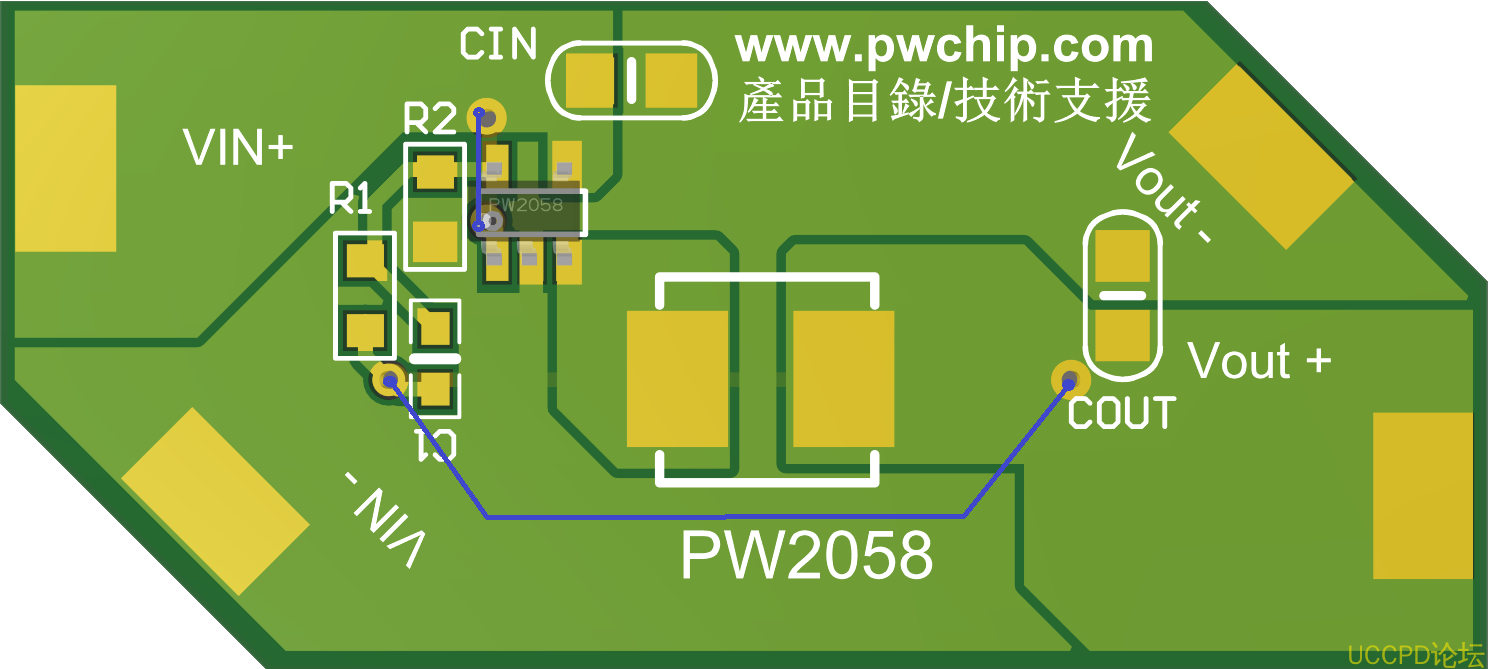

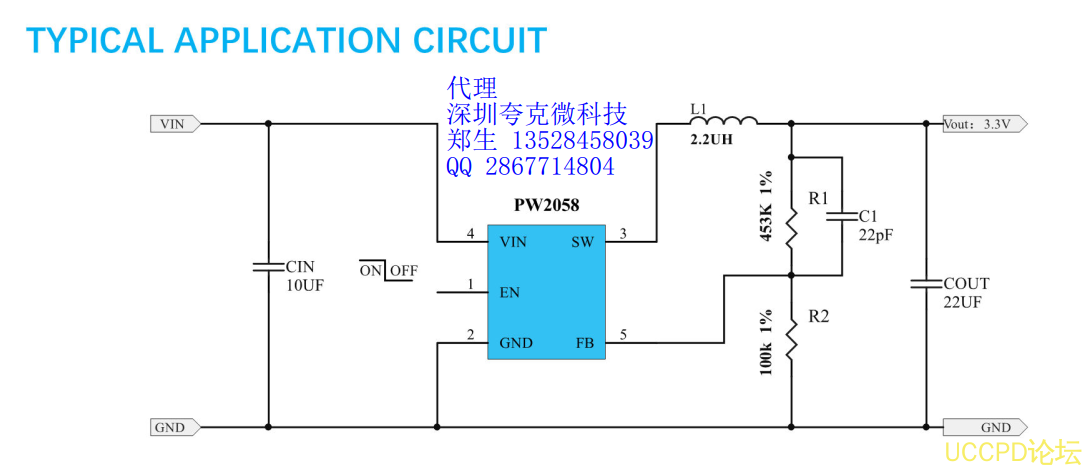

GENERALDESCRIPTION
The PW2058 is a constant frequency,current mode step-down converter. The device integrates a main switch and asynchronous rectifier for high efficiency without an external Schottky diode.It is ideal for powering portable equipment that runs from a single cellLithium-Ion (Li+) battery. The output voltage can be regulated as low as 0.6V. ThePW2058 can also run at 100% duty cycle for low dropout operation,extending battery life in portable system. This device offers two operation modes,PWM control and PFM Mode switching control, which allows a high efficiency overthe wider range of the load.
FEATURES
l High Efficiency: Up to 96%
l 1.5MHz Constant Frequency Operation
l 800mA Output Current
l No Schottky Diode Required
l 2V to 6V Input Voltage Range
l Output Voltage as Low as 0.6V
l PFM Mode for High Efficiency in LightLoad
l 100% Duty Cycle in Dropout Operation
l Low Quiescent Current: 20μA
